Flight Sim Messenger (FSM) web based ACARS client

Support Pilot Software
1

https://fsm.vsrsoftware.com/

FSM is a 100% web application, no downloads, no updates, with a clean design to allow all pilots of all aircraft on MS Flight Simulator, X-Plane, P3D to access ACARS functionality. FSM Works in any browser, so can be loaded on a device such as an iPad or a non-sim PC. Features:

• Pre-departure clearances based on your SimBrief plan
• Weather for any ICAO (ATIS,METAR,TAF)
• ATSU logon and logoffs
• Telex free text outbound and inbound messages
• CPLDC inbound/outbound messages
• Requests to ATSU for:
Level change
Speed change
Direct to Routings
“When can we” questions
• Oceanic clearances

Forthcoming features include:

• A MS Flight Sim 2020 Toolbar panel to allow easy VR access
• Inbound and outbound VATSIM Direct and Network messages via a custom designed vPilot plug-in

image382×510 52.1 KB

image502×668 109 KB

image1920×1080 211 KB

More details

2 Likes
2

Very nice! I suggest you include the term “CPDLC functions” to the title or potential users will think that this is just “another ACARS client to load weather informaiton”.

3

:+1: thanks

4

hey David
it seems like your webtool is sending out Y/WILCO instead of N/WILCO, which makes it impossible to close dialogues, as it expects an answer

example of a correct exchange:
/data2/42//WU/SQUAWK @2000
/data2/3/42/N/WILCO

example of exchange to an aircraft with your webtool:
/data2/48//WU/SQUAWK @2000
/data2/4/48/Y/WILCO

this was extracted from the hoppie log. And yes, I am sure it is your webtool :stuck_out_tongue:

6

NE or N ?

NE (for FANS 1/A)
N (for ATN B1)

7

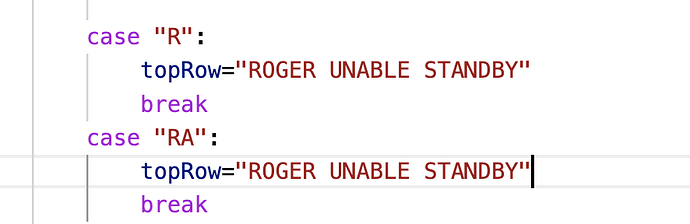

Sending N for now unless other clients require NE to close connection

image1380×382 112 KB

1 Like
8

thanks for the quick action!

9

Hey David.
Just noticed that for oceanic clearance, your tool forces to logon to a station. However, this message is sent via TELEX, so no logon should be done. Similar behaviour to DCL/PDC if you’d like
Could you revise that maybe?

10

thanks

I’ve modified the logic somewhat, and changed the Oceanic request page to include an manual ATSU entry (it will pre-pop if you want to use the same station as your previous CPDLC ATSU Logon).

Its on https://fsm.daveblackuk.com/ as v.0.93 if you could give it a test before I promote to live.

image946×1204 62.4 KB

/DB

11

seems to work as expected, many thanks!

12

Thank you! A web client is great and it seems easy to use

13

Thanks, I hope to make it an EFB app for NSFS 2024 at some point.

14

Thanks for testing

15

As a web site it is very useful IMHO.
Now that we also have a browser in X-Plane AviTab Browser: A web browser addon for the AviTab plugin - Utilities - X-Plane.Org Forum we can have it in the cockpit, too :wink:

The browser only has a height of ~530px, though. In that resolution the top menu bar is not reachable. Could you make it a bit more responsive to work with more resolutions? That would also help browsers on mobile phones.

image1197×767 43.2 KB

If you open source it, I’ll help you with it.

16

can you scroll on that?
on the bottom bar, there is a T with a double arrow that you can use to set the size of the FSM

17

Yes, scrolling is possible (although I would prefer the <body> would not have scrollbar-width: none; set). But you can’t reach the top area by scrolling (try it in a small browser window).

on the bottom bar, there is a T with a double arrow that you can use to set the size of the FSM
Ah, I missed that, thank you. That’s ok as a workaround.

18

Thanks you Raul, I was about to message and point this out, but you beat me to it. The resize function is to allow any device, such as a phone or tablet to be used as a client
